Compare Data Models

Compares the data model of one stream or baseline with one or many others, in any projects or components, and shows every difference in artifact types, attributes, data types, link types and link constraints.

Supported products: RM = IBM Engineering Requirements Management DOORS Next (Requirements Management)Configuration and governanceRead onlyVersion 6.10 · released 2026-10-27

Works in
IBM DOORS Next, all projects
Supported products
  • RM IBM Engineering Requirements Management DOORS Next (Requirements Management)
Version
6.10
Released

What it is and why it exists

The data model of a DOORS Next project (its artifact types, attributes, data types and link types) defines how requirements are captured and traced. Organizations usually want the same model in all projects, so that reports, publishing templates, integrations and global configurations work everywhere.

In practice, models drift apart: a project adds an attribute, another renames a type, a third forgets a link type. Finding these differences by comparing settings screens is close to impossible. Compare Data Models shows them in seconds.

Problems it solves

  • Projects or components whose data models differ, and no one knows where.
  • Reports, publishing templates and integrations that work in one project but fail in another.
  • Problems when delivering changes between streams or when building global configurations.
  • Manual comparisons of type systems that take days and miss details.

Benefits

  • Every difference at a glance: artifact types, attributes, data types, link types and link constraints, side by side.
  • One source, many targets: compare a stream or baseline with up to 25 streams or baselines, in the same or different projects and components.
  • Check many configurations at once: see which streams and baselines have the same data model as the source, with a mark per category.
  • Excel report with a summary and one sheet per category, ready to share with administrators.
  • Read only: nothing changes in DOORS Next.
  • Facts to work from when you harmonize the data model or govern the process.

How to use

  1. You1Choose From and the targets under To
  2. Widget2Compares the data models
  3. You3Choose a target and a category, open a rowIf needed: Many configurations: use Check
  4. Result4The whole comparison in Excel
  1. Under Compare, choose Compare to see what exactly differs, or Check to see which configurations are the same. From starts with the project and stream or baseline open in DOORS Next; Change picks another one.
  2. Under To, click Add, tick up to 25 streams or baselines in the tree of projects and components, or a rule such as All streams, and click Add targets. With one target, Swap exchanges From and To.

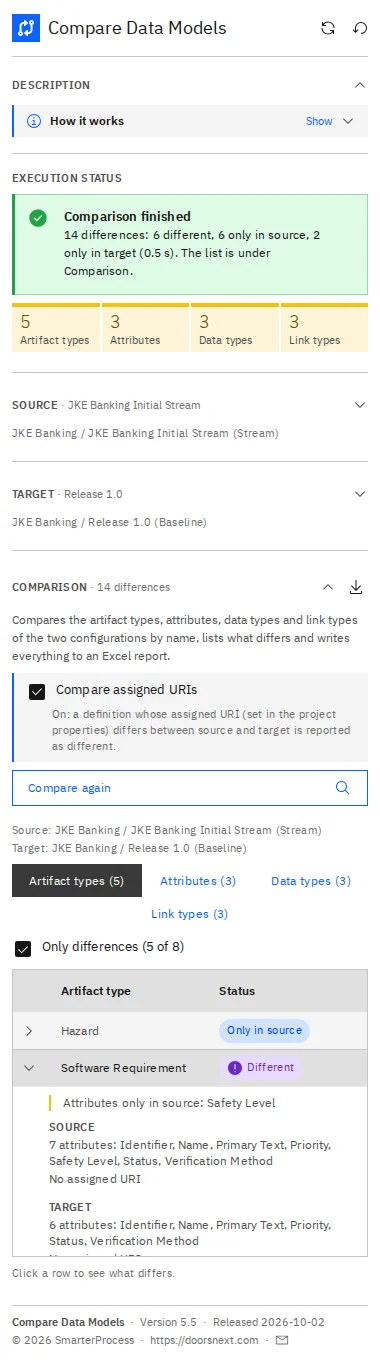

  3. Click Compare. The result block shows the number of differences per category.
  4. Under Differences, pick a target when there are several, then a category, show only differences or all definitions, and open a row to see what differs.
  5. Save the whole comparison with Export to Excel in the result block.
  6. To check many configurations, switch to Check, click Choose, tick what to check, click Check these and then Check. The result block counts the configurations that are Same, Different or Not read. Under Result, ✓ means Same and ✕ Different; click a configuration to compare it in detail.

Good to know

  • Definitions are matched by name. With Compare assigned URIs on (the default), a different assigned URI also counts as a difference; these URIs matter for global configuration and reporting.
  • Typical uses: before a delivery between streams, before setting up a global configuration, and when aligning projects with a corporate template.
  • In Check, Same means decides when a configuration counts as the same: Names and structure (the default) also compares what each definition holds, Names only compares just the names.

What's new in version 6.10

· Change titles are published in English.

  • Report ready in the notifications
