Module Fill icon: white hierarchy chart on a burgundy square

Module Fill

Builds the whole structure of a module from a simple list of artifact IDs and levels, in one step.

Supported products: RM = IBM Engineering Requirements Management DOORS Next (Requirements Management)Module structureChanges dataVersion 2.29 · released 2026-10-27

Works in
IBM DOORS Next module
Supported products
  • RM IBM Engineering Requirements Management DOORS Next (Requirements Management)
Version
2.29
Released

What it is and why it exists

After a migration from another tool, a reorganization of a project, or when a document has to be assembled from existing requirements, the artifacts already exist in DOORS Next but the module that should contain them is empty. Placing hundreds of artifacts into a module by hand, in the right order and at the right level, is slow, and mistakes are easy to make.

Module Fill handles this step. You provide the structure as a simple list of pairs, such as [231,1][3513,1.1][67452,1.1.1], which can be prepared in Excel or exported from the source tool, and the widget builds the module.

Problems it solves

  • Empty modules that must be filled with hundreds of existing artifacts in a precise order and hierarchy.
  • Migrations where the document structure is known in the source tool but has to be rebuilt in DOORS Next.
  • Manual drag and drop with a high risk of wrong order or wrong levels.
  • Partly built modules after interrupted manual work.

Benefits

  • Minutes instead of days for large document structures.
  • Checked before it runs: the list is validated while you type, every ID is looked up, and the planned module is shown as a table.
  • All or nothing: the structure is created in one change, so the module is never left half filled.
  • Repeatable: the same list can be used again, for example in a test project first.
  • Headings recognized automatically from the artifact types you name, for example Heading.
  • Also for modules with content: the structure is added at the end of the module, and what is there stays.

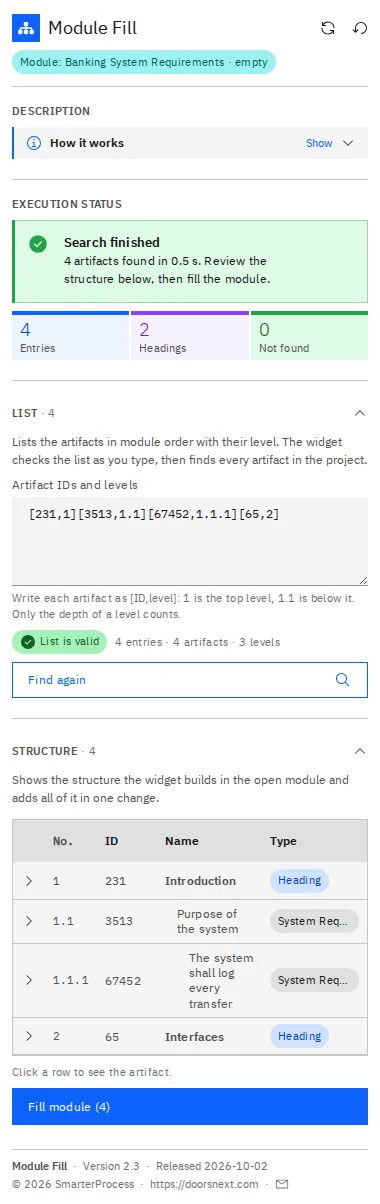

How to use

  1. You1Open the module to fill
  2. You2Paste the list of [ID,level] pairs
  3. Widget3Checks the list and finds every artifactIf needed: IDs not found: correct the list and find again
  4. You4Check the planned structure
  5. DOORS Next5Fill module: all artifacts added in one change
  6. Result6Change report in Excel
  1. Open the module to fill, usually an empty one.
  2. Under List, paste the [ID,level] pairs in module order into Artifact IDs and levels. Levels are written as 1, 1.1, 1.1.1 and so on. Mistakes are shown while you type.
  3. In Artifact types added as headings, name the artifact types that become headings (by default Heading).
  4. Click Find artifacts. The widget finds every artifact and lists any IDs that do not exist in the current configuration, with the reason.
  5. Check the planned structure under Structure.
  6. Click Fill module and confirm with Add N artifacts. When it is done, refresh the module or reload the page to see the result; Log saves the change report.

Good to know

  • In a module that already has content, the structure is added at its end and what is there stays; the confirmation says which case applies.
  • The artifacts must already exist in the project and configuration you work in.
  • The artifact types added as headings are remembered in this browser.
  • The fill is sent in one change and cannot be stopped once sent. Work in a change set if you want to review it before delivery.

What's new in version 2.29

· Change titles are published in English.

  • Report ready in the notifications
