Module Explorer 2.0

Shows the open module as an outline tree next to the module view, so you can move through, search and export even very large documents.

Supported products: RM = IBM Engineering Requirements Management DOORS Next (Requirements Management)Module structureRead onlyVersion 2.32 · released 2026-11-19

Works in
IBM DOORS Next module
Supported products
  • RM IBM Engineering Requirements Management DOORS Next (Requirements Management)
Version
2.32
Released

What it is and why it exists

Large specifications in DOORS Next can contain thousands of artifacts in many chapters. In the standard module view it is easy to lose orientation: scrolling to a chapter takes time, and there is no compact outline of the whole document.

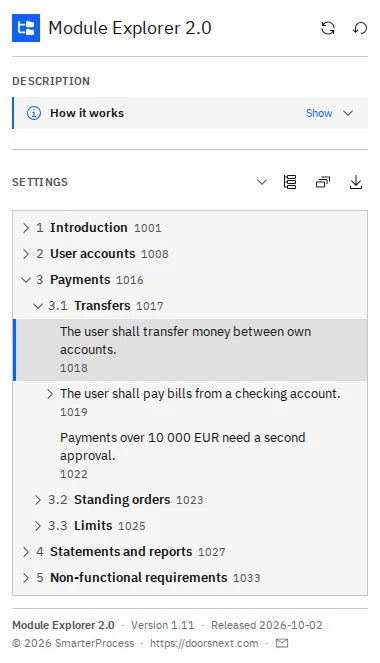

Module Explorer 2.0 is SmarterProcess's own new version of IBM's Module Explorer sample. It shows the module as a tree with section numbers, keeps it in sync with what you select, and exports the outline to Excel.

Problems it solves

  • Losing orientation in long modules with deep chapter structures.
  • Slow navigation between chapters by scrolling.
  • No quick way to find an artifact by its name, ID or section number.
  • No table of contents at hand for reviews or planning.

Benefits

  • Orientation: the whole document as a tree with section numbers, opened to the level you choose.
  • Fast navigation: one click on a tree row shows the artifact in the module.
  • Search by name, ID or section number, with the matches shown in their context.
  • Follows your work: the artifact you select in DOORS Next is highlighted in the tree.
  • Excel outline formatted for printing and sharing, with chapters that fold.
  • Read only and safe for every user.

How to use

  1. You1Open a module
  2. Widget2Shows it as a tree that follows the selection
  3. You3Expand chapters or search by name or IDIf needed: Highlight in module selects the matches
  4. You4Click a row to show the artifact
  5. Result5Outline in Excel
  1. Open a module. The tree appears automatically, and the module's name is shown under the widget title.
  2. Expand and collapse chapters, or all of them with the expand icon at the Settings heading. Change at Settings opens the tree to a chosen level (Open to level) and sets how rows are shown.
  3. Type a name, ID or section number in the search field over the tree; the list next to it shows All rows or Only headings. Highlight in module selects the matches in the module.
  4. Click a row to show that artifact in the module.
  5. Click the download icon at the Settings heading (Export to Excel) to save the outline.

Good to know

  • The tree can be operated completely with the keyboard.
  • After artifacts were added or moved, the Refresh button in the header reads the module again.
  • Highlight in module selects at most 200 artifacts, the limit of DOORS Next.
  • Without an open module the widget lists your recent modules and picks up a module as soon as you open one.

What's new in version 2.32

· Change titles are published in English.

  • One highlighted row
