Import Repair 2.0
Rebuilds the chapter hierarchy of a module that was imported as a flat list, using the level stored in an attribute.
What it is and why it exists
Importing requirements from Excel or CSV is fast, but the result is often a flat module: all artifacts at the same level, with the original chapter hierarchy lost. Usually the hierarchy still exists in the data, as a level number or an outline number (1, 1.2, 1.2.3) in one of the imported attributes.
Restructuring hundreds of artifacts by hand means moving them one by one. Import Repair 2.0, SmarterProcess's new version of IBM's Import Repair sample, reads the levels, checks them and rebuilds the hierarchy automatically, without changing the order of the document.
Problems it solves
- Flat modules after imports from Excel, CSV or other tools.
- Hours of manual moving of artifacts to rebuild chapters.
- Inconsistent level data that breaks a structure without anyone noticing.
- Uncertainty about what a restructuring will actually change.
Benefits
- The document structure back in minutes, in the original order.
- Checks first: missing values, invalid levels and skipped levels are listed, each with a link to the artifact.
- Preview of every move (level now and after) before anything changes.
- Only what is wrong moves; artifacts already in the right place stay untouched, so it can safely be run again.
- Change report of every move.
How to use
- You1Open the imported module
- You2Enter the level attribute, check levels
- DOORS Next4Move artifacts under their right parents
- Result5Change report in Excel
- Open the imported module. The line under the title shows its name and number of artifacts.
- In Settings, click Change, enter the Level attribute (the attribute that holds each artifact's level) and choose How levels are written, then click Done.
- In Repair, click Check levels. Nothing changes yet. Fix any problems the widget lists, then click Check again.
- Review the planned moves in Artifacts (each artifact's level now and after), click Move artifacts and confirm with Move N artifacts.
- Follow the progress (you can Stop at any time); at the end click Log in the result to download the change report.
Screenshots

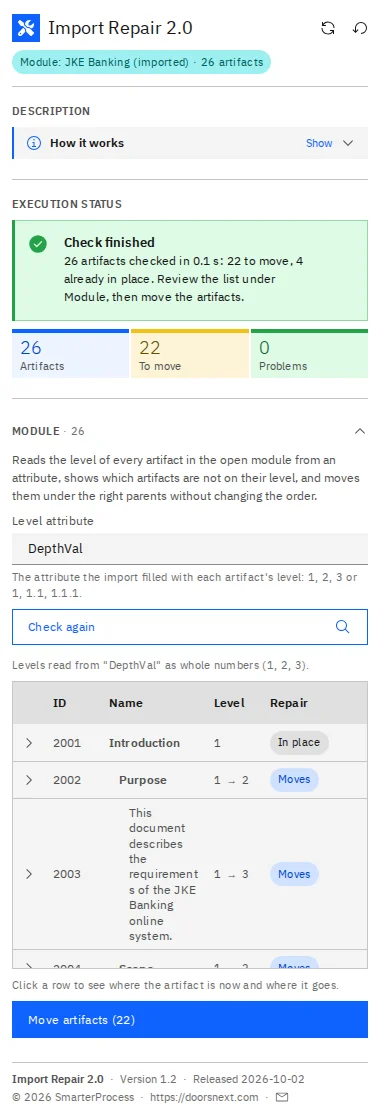

1The attribute the import filled with each level, ready to check 2Check finished: which artifacts move and which are already in place 3Levels with problems are listed with the reason; nothing is moved 4Confirmation before the artifacts are moved, one at a time in module order 5The structure is repaired: every artifact is on its level
Good to know
- Levels can be whole numbers (1, 2, 3) or outline numbers (1, 1.2, 1.2.3); the widget detects which one is used.
- If the module was changed by someone else after the check, nothing is moved and the widget asks you to check again.
- If a move fails, the run stops so that no artifact ends up in the wrong place; fix the cause and run it again to continue.
What's new in version 1.31
· Change titles are published in English.
- Repair closes after a run
